100A Wi-Fi smart three phase energy meter and voltage protector Bidirectional in pakistan

Description

Wi-Fi Three Phase Energy Meter  Pakistan
PDF FILE : User’s Manual

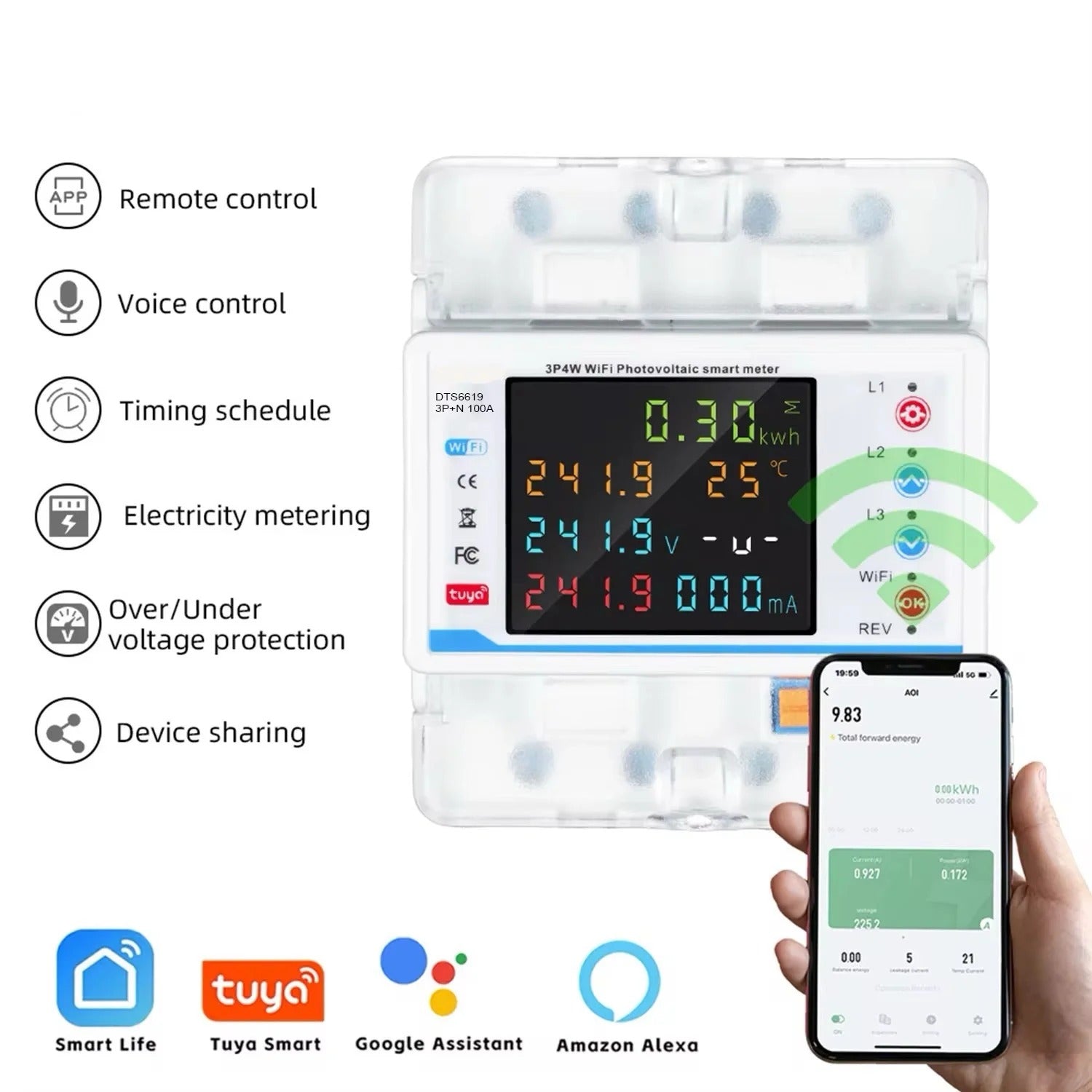

This advanced device combines precise Three-Phase Energy Metering with essential circuit protection in one compact unit. With direct wiring up to 100 Amps per phase, it is ideal for apartments, small factories, and commercial buildings in Pakistan. The integrated Wi-Fi Smart capability allows you to monitor real-time consumption (kWh), current, and voltage remotely via a mobile app, giving you actionable data to reduce your electricity bills

Main Function:Wi-Fi Three Phase Energy Meter  Pakistan

1 Over voltage protection

2 Under voltage protection

3 Over current protection

4 Under current protection

5 Delay pro protection

6 Timer switch

7 Bidirectional energy monitor

8 Voltage imbalance protection (Can only be set on app)

9 Current imbalance protection (Can only be set on app)

10 Shortage phase protection (Can only be set on app)

11 Phase sequence protection (Can only be set on app)

12 High temperature protection (Can only be set on app)

13 Current leakage protection (This function must be used with out or built-in current transformer)

Each parameter can be set with action threshold and On/Off



Over voltage limit

120V-300V      275V

If the over voltage limit is set at 300V, when the voltage is over 300V, the device will automatically switch off.

Under voltage limit

80-210V           175V

If the under voltage limit is set at 80V, when the voltage is under 80V ,the device will automatically switch off.

Under &over Voltage protection delay

1-9999Second(S)   3S

If the voltage is over or under the set value,the device will automatically switch off after the set delay time.

Over & under voltage protection recovery time

1-9999Second(S)   20S

If the voltage is over or under the set value ,the device will automatically switch off and when the voltage returns to normal value it will recover after the set delay time.

Over current limit

1.0-100.0A             80.0A

If the over current limit is set at 80A, the device will automatically switch off when the current is over 80A.

Over & under current protection delay

0000-9999Second(S)  5s

If the current is over or under the set value, the device will automatically switch off after the set delay time

Installation and usage condition:

1 Working temperature :-30C-70C

2 working humidity :<85%

3 working altitude:Not exceeding 2000m

4 pollution level : level 3

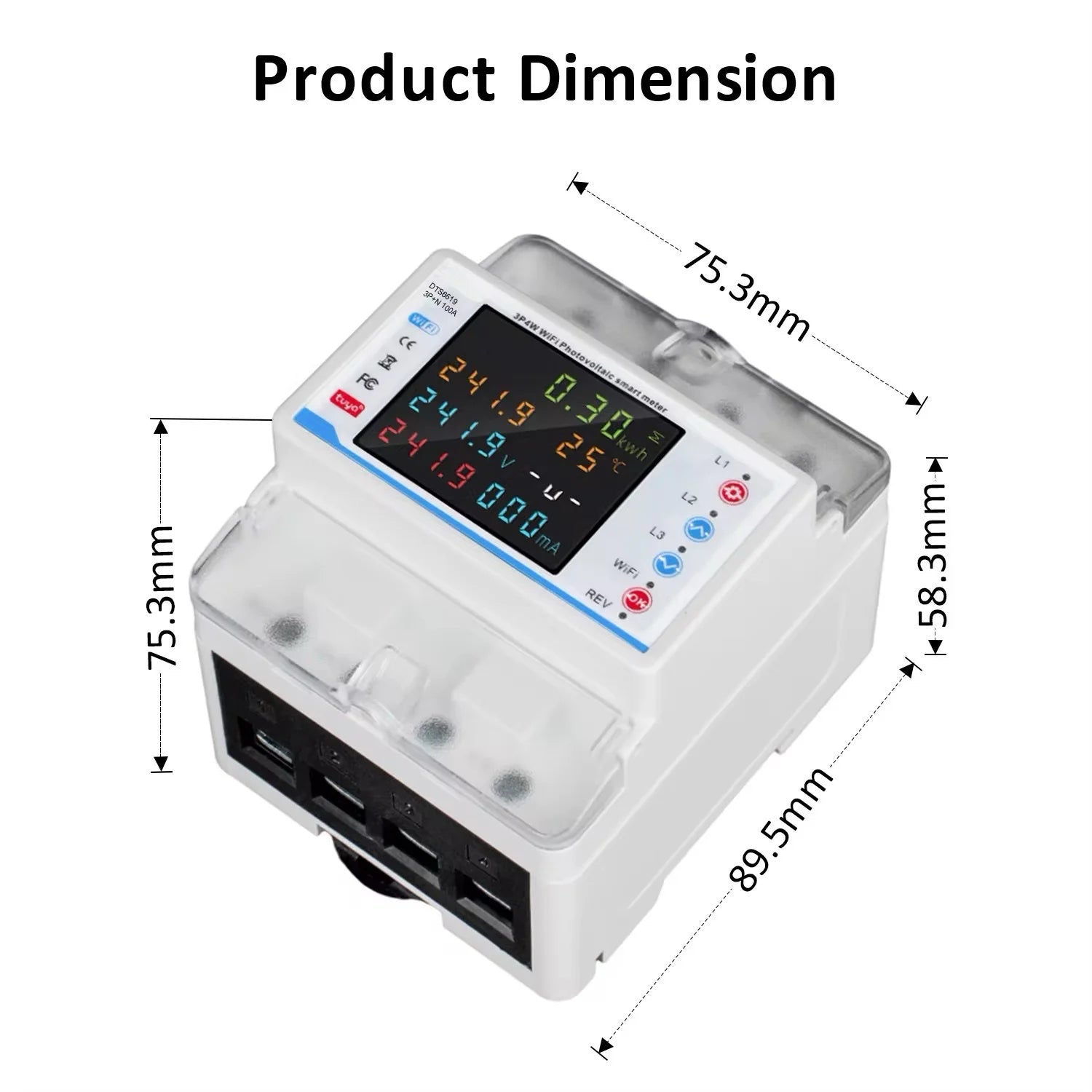

5 Modular desige appearance and din rail installation

6 Wiring capacity : insulated copper wire uner 35mm

HOW TOADD DEVCETOAPP

1 Use your smart phone to scan QR codes, or search :Smart life or Tuya Smart: app in google play or app store to download and instal.

2 Create an account with your mobile number.

3 Connect you mobile to your Wi-Fi router.click+inthe upper right conner of homepage or click :Adddevice:then select breaker :Switch module (Wi-Fi) fome energy long press Wi-Fi button for 5 seconds after the Wi-Fi indicators starts to flash quickly open app to pair.
