CHINT NP2 Series Push Button in Pakistan

Description

The CHINT NP2 Series Push Buttons are a range of industrial control components designed for various applications, offering configurations like normally open (NO) and normally closed (NC) contacts.  Most models have a standard 22mm mounting size, are color-coded (Green, Red), and some include illumination for better visibility.  A mushroom head option is available for emergency stops.  These durable buttons are built for industrial use, feature a modular design for combining contact blocks, and ensure reliable electrical contacting

Features of CHINT NP2 Series Push Button:

• Variety of Configurations: Offers a range of contact configurations (NO, NC).
• Standard Mounting Size: 22mm mounting diameter (most models).
• Color-Coded: Different colors (Green, Red) for easy identification and function differentiation.
• Illuminated Options: Some models offer illumination for better visibility.

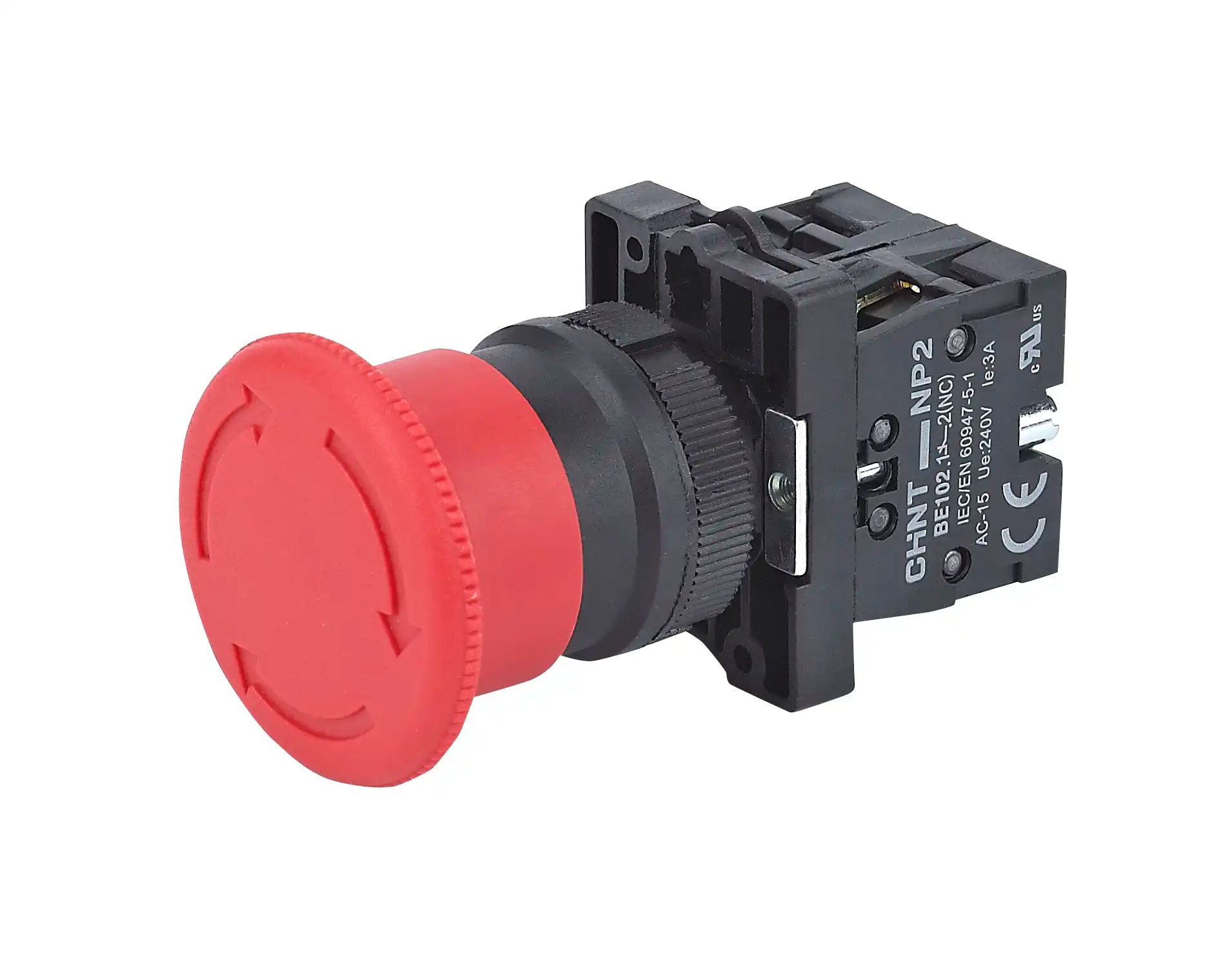

• Mushroom Head Option: Provides a larger surface area for easier operation, especially in emergency situations.
• Durable Construction: Designed for industrial use.
• Modular Design: Contact blocks can be combined.
• Reliable Contacting: Designed for consistent electrical contact.

Specifications of CHINT NP2 Series Push Button:

• Series: CHINT NP2
• Mounting Hole Diameter: 22mm (standard), 40mm (NP2-BS542)
• Contact Types:
• NO (Normally Open)
• NC (Normally Closed)
• Colors: Green, Red
• Illumination: Available in some models (LED)
• Standards Compliance: IEC/EN 60947-5-1 (or equivalent)
• Rated Insulation Voltage (Ui): 690V
• Conventional Thermal Current (Ith): 10A
• Electrical Life: AC 5 x 10^5 operation cycles, DC 2 x 10^5 operation cycles
• Mechanical Life: 1 million operation cycles.
• Wiring: Screw-type terminals.

Model:

• NP2-BA31: Green, 22mm, 1NO (Non-Illuminated)
• NP2-BA41: Red, 22mm, 1NC (Non-Illuminated)

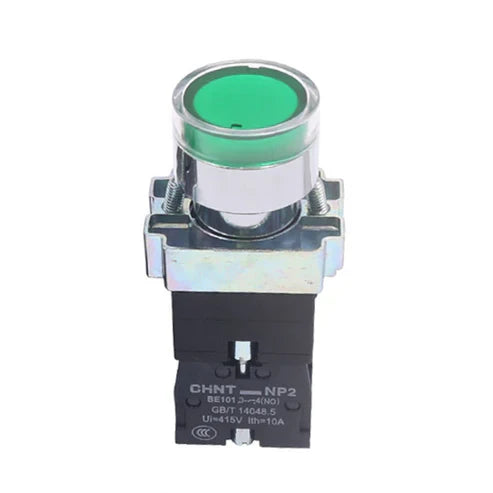

• NP2-BW3361: Green, 22mm, 1NO (Illuminated)
• NP2-BW3462: Red, 22mm, 1NC (Illuminated)
• NP2-BS542:
• NP2-BE101: Contact block, 1NO
• NP2-BE102: Contact block, 1NO

Uses:

• Industrial Control Panels: Starting/stopping machinery, signaling.
• Operator Interfaces: Machine control, system monitoring.
• Emergency Stops: Providing a large, easy-to-operate button for safety.
• Pilot Devices: In control circuits to activate other components.
• General Circuit Control: Switching electrical circuits.

Benefits:

• Reliable Control: Provides dependable switching functionality.
• Easy Identification: Color-coded buttons prevent errors.
• Clear Indication: Illuminated versions provide visual status.
• Increased Safety: Mushroom head buttons for emergency stops.
• Versatile Application: Suitable for a wide range of industrial uses.
• Easy Installation: Standard mounting simplifies panel assembly.
• Durable Design: Withstands harsh industrial environments.

Package includes:

• 1x CHINT ND9-22D/4 or ND16-22D/4 Indication Lights
