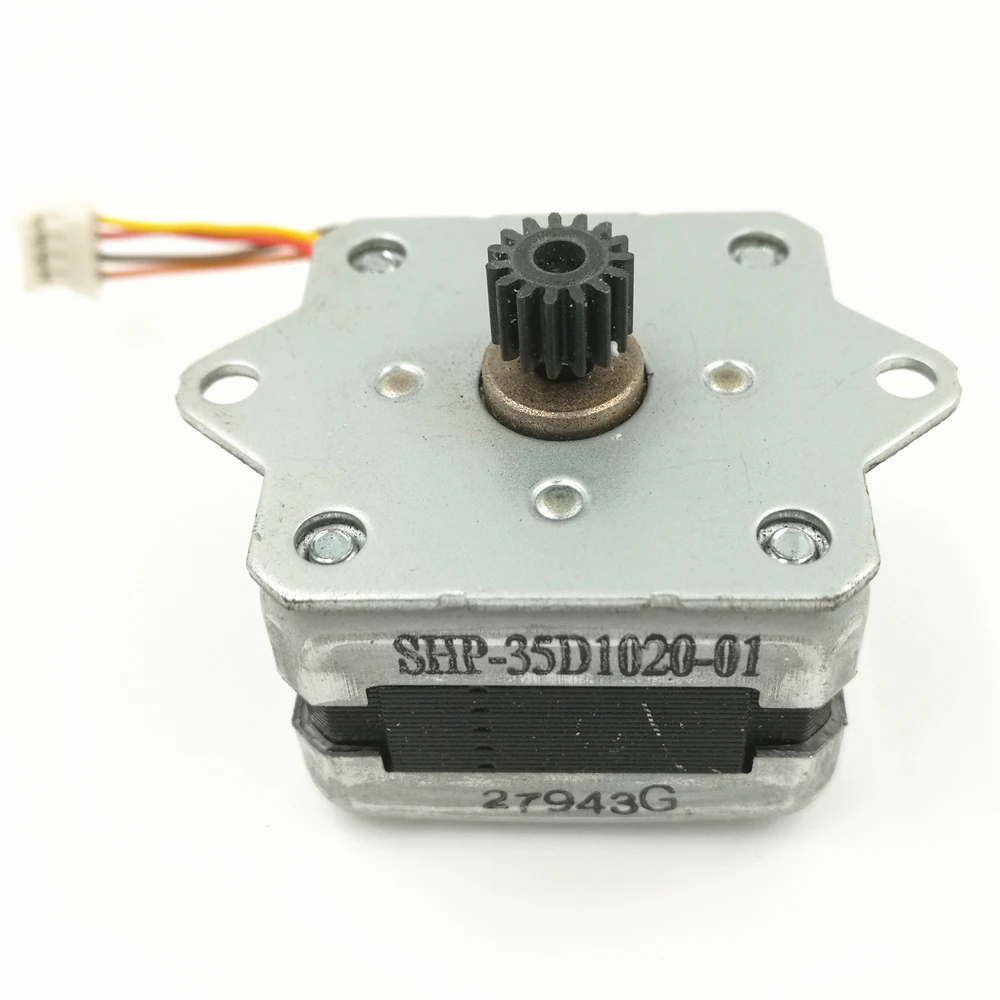

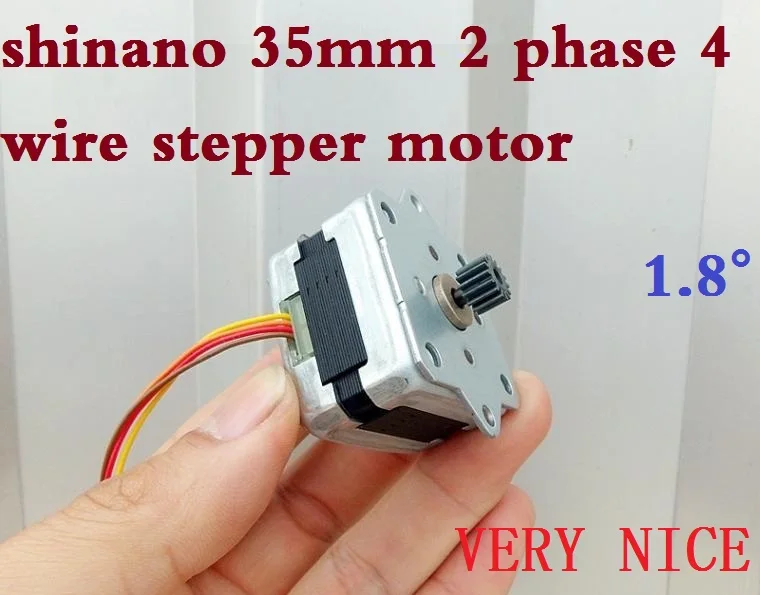

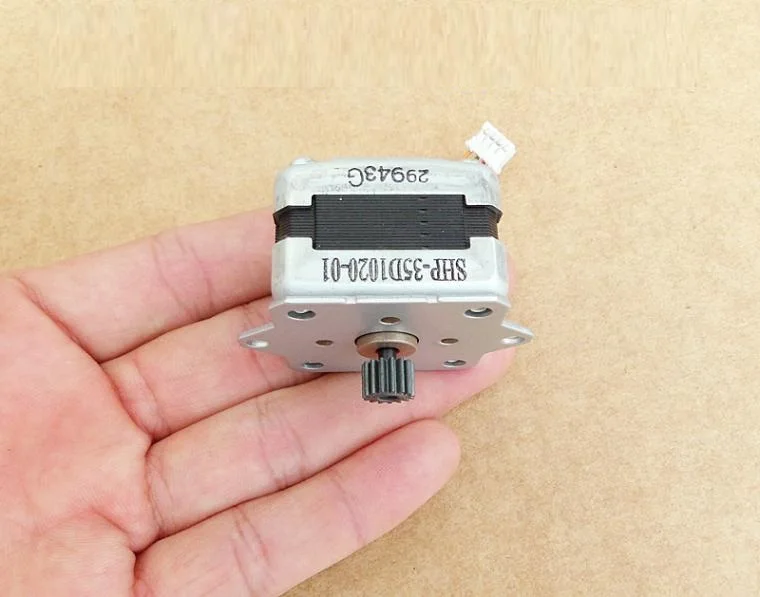

Small Stepper Motor shp-35d1020-01

Small Stepper Motor shp-35d1020-01 in Pakistan BR1059



Specification:




•
  Stepper motor specifications: 35*35MM






•
  Stepper motor height: 24.8 MM






•
  Step angle: 1.8 degrees






•
  Output shaft: 2.9 MM






•
  (with a diameter of 8.5MM, 15 teeth, 0.5 modulus of gear)






•
  Weight: 116 G






•
  Line length: about 48 MM






•
  Wire type: 2 phase 4 wire






•
  (red and yellow are a group ,brown and orange is another group)






•
  Red wire: A+. Yellow wire: A -. Brown wire: B+. Orange wire: B -





          Resistance: 4.3 ohms
